CIS 207 Introduction to Web Development


Chapter 3: Colors & Graphics

Colors and graphics can make your web page visually appealing so it will catch the viewer's eye. You can set background colors, add background images, modify the appearance of text, and add graphics to a web page.

HTML identifies a color in one of two ways:

  1. by the color name
  2. by color values

Using Color Names

Color names are text strings, such as red, white, or blue that can be used--instead of the far less obvious hexadecimal RGB color codes--to specify the color for the text, window background, or background of a table cell. These names are divided into two categories:

  1. basic color names, defined as part of the HTML specification, and
  2. extended color names, which are not defined in the standard.

However, browsers since version 3.0 (NS3 or IE3) support both sets of colors. The same color code will often produce slightly different colors on different computers, due to the differing qualities and properties of the displays.

There are 16 basic color names that are recognized by all versions of HTML as outlined below.

Aqua Gray Navy Silver
Black Green Olive Teal
Blue Lime Purple White
Fuchsia Maroon Red Yellow

Here's a list of the 124 extended color names.

aliceblue antiquewhite aquamarine azure
beige bisque blanchedalmond blueviolet
brown burlywood cadetblue chartreuse
chocolate coral cornflowerblue cornsilk
crimson cyan darkblue darkcyan
darkgoldenrod darkgray darkgreen darkkhaki
darkmagenta darkolivegreen darkorange darkorchid
darkred darksalmon darkseagreen darkslateblue
darkslategray darkturquoise darkviolet deeppink
deepskyblue dimgray dodgerblue firebrick
floralwhite forestgreen gainsboro ghostwhite
gold Goldenrod Greenyellow honeydew
hotpink indianred indigo ivory
khaki lavender lavenderblush lawngreen
lemonchiffon lightblue lightcoral lightcyan
lightgoldenrodyellow lightgreen lightgrey lightpink
lightsalmon lightseagreen lightskyblue lightslategray
lightsteelblue lightyellow limegreen linen
magenta mediumaquamarine mediumblue mediumorchid
mediumpurple mediumseagreen mediumslateblue mediumspringgreen
mediumturquoise mediumvioletred midnightblue mintcream
mistyrose moccasin navajowhite oldlace
olivedrab orange orangered orchid
palegoldenrod palegreen paleturquoise palevioletred
papayawhip peachpuff peru pink
plum powderblue rosybrown royalblue
saddlebrown salmon sandybrown seagreen
seashell sienna skyblue slateblue
slategray snow springgreen steelblue
tan thistle tomato turquoise
violet wheat whitesmoke yellowgreen

The 16 basic colors are defined in the default Microsoft Windows color map, and are consequently never dithered by 8-bit (256-color) Microsoft Windows systems. The 124 extended colors are taken largely from the UNIX X-Windows system default color palette. Note that most of these colors are not defined in the Microsoft Windows color map, so that they are often dithered or otherwise replaced on 8-bit color displays.

If you want to have more control over the colors in your web page, you must use a color value.

Using Color Values

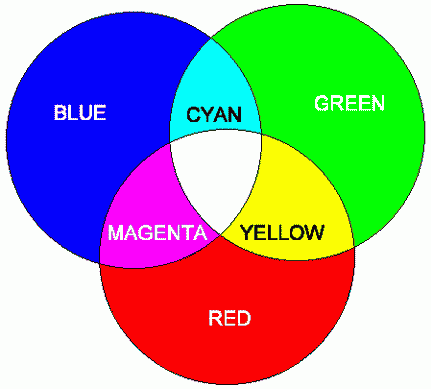

A color value is a numerical expression that exactly describes a color's appearance. In classical color theory, any color can be thought of as a combination of three primary colors: red, green, and blue. By varying the intensity of each primary color, you can create any color and any shade of color that you want.

The intensity of each of the primary colors is assigned a number from 0 (absence of color) to 255 (highest intensity). This is how we arrive at the 16.7 million (255³) distinct colors that can be defined - more combinations than the human eye can distinguish.
Each color is represented by a triplet of numbers, called an RGB triplet, based on its Red, Green, and Blue components. For example, white has a triplet of (255,255,255) - indicating that red, green and blue are equally mixed at the highest intensity. Gray is defined with the triplet (192,192,192) - indicating an equal mixture of the primary colors with less intensity than white. Yellow has the triplet (255,255,0) because it is an equal mixture of red and green with no presence of blue.

These RGB triplets are entered into your HTML code to express the exact color. HTML requires that such color values be entered as hexadecimals. A hexadecimal is a number that is represented using 16 as a base rather than 10. In base 10 counting, you use combinations of 10 characters (0 through 9) to represent all the integers, whereas hexadecimals include 6 extra characters: A (for 10),  B (for 11), C (for 12), D (for 13), E (for 14) and F (for 15). Just as we go to two digits in base 10 after we reach 9, we do the same in hexadecimals when we reach 15. The base 10 number 16 is expressed as a hexadecimal number of 10, 17 is 11, etc.

To convert a base 10 value to hexadecimal value, convert the value to multiples of 16 plus a remainder. For example, 21 is equal to (16 x 1) + 5, so its hexadecimal equivalent is 15. The number 255 is equal to (16 x 15) + 15, or FF in hexadecimal format.

Once you know the RGB triplet of a color you want to use in your web page, you need to convert that triplet into hexadecimal format and express it in a single string of six characters. For example, the color yellow has the RGB triplet (255,255,0) and is represented by the hexadecimal string FFFF00.

Do you have to become a math major to add color to your web pages?

No. You can use color tools to help you pick and code your colors. Take a look at http://www.pagetutor.com/pagetutor/makapage/picker/, or see Two4U for lots of color choices and an interactive online color composing engine. Or, try http://www.primeshop.com/html/216colrs.htm. Or you can download a tiny 49K program I use called ColorPick which lets you point to any color on your screen and it gives you the RGB triplet and its hexadecimal equivalent.

Windows Color Map

The default Microsoft Windows color map consists of the 16 basic colors defined above, plus 216 additional colors defined by equally sampling each of the primary colors (red, green, and blue) in the interval 0 to 255, and mixing these colors together in all possible combinations. The "equal sampling" is accomplished by taking primary color intensities with values of:

Decimal 0 51 102 153 204 255 (multiples of decimal 51)
Hex 0 33 66 99 CC FF (multiples of hex 33)

These are simply the six numbers equally spaced between 0 and 255 (or 00 and FF). The total number of colors (216) is just the total numbers of ways these colors can be mixed: 6 (red) x 6 (green) x 6 (blue) = 216.

There are no special names associated with the colors of the Windows color map, other than for the 16 basic colors listed above. However, because these colors are never dithered on Microsoft Windows systems with 8-bit color displays, this set is an ideal palette choice when creating Web graphics. In many graphics editing programs, this palette can be selected by choosing the "Windows color map" as the default palette selection.

Check out the 216-color browser-safe pallette.

Adding Color to a Web Page

Web browsers have a default color scheme they apply to web pages. If these defaults have not been changed on your browser, you'll see black text on a white background with links appearing as blue underlined text. Visited links will appear in purple. You can change your browser defaults by clicking on Tools, Internet Options, Colors.

Web authors can modify the properties of a page by using the <BODY> tag. The syntax for controlling a page's color scheme through the <BODY> tag is:

<BODY BGCOLOR=color TEXT=color LINK=color VLINK=color>

The BGCOLOR property sets the background color, the TEXT property controls the text color, the LINK property defines the color of hypertext links, and the VLINK property defines the color of previously visited links. The value of color will be either a color name or a color's hexadecimal value. If you use the hexadecimal value, you'll need to insert  the pound symbol (#) before the hexadecimal string and enclose it in quotes. For example, if you wanted the Jeff State purple to be your background color, you would use the following tag, except, in this example, I've used a table so that the entire background of this page will not change to purple.

<BODY BGCOLOR="#0000A0">


Spot Color

Specifying the text color in the <BODY> tag changes the color of all the text on the page. Often, you may want to change the color of just one word or character. Color that affects only a few sections of a page is called spot color. HTML allows you to create spot color with the <FONT> tag. The syntax for the font tag is:

<FONT SIZE=size COLOR=color FACE=fontname>Text to use these settings</FONT>

Similar to the BGCOLOR property of the <BODY> tag, the syntax for the COLOR property of the <FONT> tag can be specified as either a color name or a color's hexadecimal value. If you use the hexadecimal value, you'll need to insert  the pound symbol (#) before the hexadecimal string and enclose it in quotes.

For example, to make the words "Jeff State" appear in purple (hex color 0000A0) we can use:

<H3>I'm attending <FONT COLOR="0000A0">Jeff State</FONT> this semester.</H3>

Which would appear as:

            I'm attending Jeff State this semester.

Or, Let's assume we wanted to make the words "Jeff State" appear in red. We can use:
<H3>I'm attending <FONT COLOR=RED>Jeff State</FONT> this semester.</H3>

Which would appear as:

            I'm attending Jeff State this semester.

As you can see, we specify color names without quotes, and specify color values with quotes.

Font Size

The SIZE property of the <FONT> tag allows you to set the font size. The SIZE value can be expressed in either absolute or relative terms.

An absolute size will set the size to a predefined browser size of 1, 2, 3, etc. up to size 7. Remember that the user sets the actual size of type on their browser. Most users probably accept the default sizes, which will vary depending upon the browser and operating system. I've noticed that Internet Explorer for the Mac defaults to a smaller font size than it does on IBM compatibles.

A relative size will set the size up or down a size. For example, SIZE=+1 will increase the size by one browser font size, relative to the surrounding text. Likewise, if you wanted to increase the font size by 2 relative to the surrounding text, you enter <FONT SIZE=+2>. You can also use SIZE=-1 to reduce the size by one browser font size, relative to the surrounding text.

However, the browser actually picks the exact font size to use. HTML tells the browser to use a SIZE of 1, 2, 3, etc. up to 7. These are the various sizes and the way they will appear in the browser you are currently using (SIZE  set in absolute terms).

CODE BROWSER VIEW
<FONT SIZE=1>

Size=1

<FONT SIZE=2>

Size=2

<FONT SIZE=3>

Size=3

<FONT SIZE=4>

Size=4

<FONT SIZE=5>

Size=5

<FONT SIZE=6>

Size=6

<FONT SIZE=7>

Size=7

Here's an example of setting the SIZE property in relative terms:

CODE BROWSER VIEW
<FONT SIZE=-2>

Size=-2

<FONT SIZE=-1>

Size=-1

no code here

Default Size

<FONT SIZE=+1>

Size=+1

<FONT SIZE=+2>

Size=+2

<FONT SIZE=+3>

Size=+3

<FONT SIZE=+4>

Size=+4

Changing Font Face

With the FACE property you can override the browser's default font choice. However, you must specify a font that is installed on the user's computer. Due to the fact that you do not know what fonts are installed on someone else's computer, the FACE property allows you to specify a list of potential font names. The browser will attempt to us the first font on the list, then your second choice, etc. If they don't have any of the fonts you specify, the browser will ignore this property and use the default font.

New Information:Now, we can use Web fonts.

For example, if you wanted to display the word "College" in a font without serifs, you could enter the following HTML tag: (each of these specified fonts is a non serif font)

<FONT FACE="ARIAL, HELVETICA, SAN SERIF">College</FONT>

The browser you're currently using will display it as follows:

College

The browser will first attempt to display the word "College" in the Arial font. If the user does not have Arial installed, it will try Helvetica, and if it is not an available font, it will try San Serif. If none of these fonts are available, the browser will use the default font.

Background Images

Another property of the <BODY> tag is the BACKGROUND property which allows you to use a graphic file as a background image. The syntax for inserting a background image is:

<BODY BACKGROUND="image file">

Here, image file is the filename or the URL of the graphic file you want to use. When the browser retrieves your graphic file, it repeatedly inserts the image into the page's background until the window is filled up. For example, if you wanted to use the following graphic file named "bricks.jpg" as a background image, you could use the following tag:

<BODY BACKGROUND="bricks.jpg">

Click HERE to see a page that uses the above tag.

Did you notice how difficult it was to read the text on the previous link with this background image? That was a terrible choice for a background, unless you planned to have very little text - and VERY LARGE text on your page. You can even use animated GIFs, which we'll be talking about in a few minutes. For now, let's see how the following animated gif (chain.gif) would look as a background image. Click HERE to see.

Don't use an image that will detract from your page. Use very small image files so they will load quickly. The chain.gif is only 1K in size. The bricks.jpg is only 5K in size.

You can find background images on the web. If you find an image you like, right-click it, then click on SAVE BACKGROUND AS. Although you are technically in violation of copyright laws if you use an image without obtaining permission from its creator, you can probably get by with it for your own personal use. You must obtain permission to use someone else's work - especially if you plan to use it commercially.

There are a number of web sites offering free images for personal use:

Creating Your Own Images

Sometimes you may want to create a stripe down the left side of the page. You can use Paint to create a background image that will appear as a purple stripe down the left side of a web page. Wanting the image to tile vertically, but not horizontally, this image is 1800 pixels wide by 13 pixels tall. The following image is 1.51 K.

Actually, there is no black border on this image, as you see above. This image border was set to one so that you can see how wide it actually is - 1800 pixels wide. This means that it will only tile vertically - unless someone is using a monitor set to display over 1800 pixels wide.

You can see how it looks when it is used as a background at http://www.halharris.com/owp. Note that the links appear in white and visited links appear in yellow.

GIF Files

GIF (Graphic Interchange Format) is the most commonly used image format on the web. GIFs are best for clip art, line art, logos or icons since they are limited to displaying 256 colors. There are actually two GIF file formats: GIF87 and GIF89. GIF89 is the newer format and includes enhancements such as interlacing, transparent colors, and animation.

Interlacing refers to the way the GIF file is saved by the graphics software. Noninterlaced GIF files are saved one line at a time, starting at the top of the image. As it loads, it gradually appears from top to bottom as indicated on the right.













Interlaced GIF files are retrieved stepwise. Every 5th line might appear first, then the every 6th line, etc. As an interlaced GIF file is loaded, it starts our blurry and gradually comes into focus as you can see on the left.











Another enhancement of the GIF89 format is the ability to create transparent colors. The browser displays what ever is on the page background making the image appear transparent, and thus integrating the inline image with the page background.

Animated GIFs

One of the more popular uses of GIFs in recent years has been to create animated images. Compared to video clips, animated GIFs are easier to create and smaller in size. An animated GIF is composed of several graphic images, each one slightly different. The browser displays the images, one after another in rapid succession, creating the animated effect. The 198hacker.gif image on the right is only an 8K file. To create animated GIFs, you need special software. There are several programs that allow you to create animated GIFs. Here is a list of some that you can download.

If you don't want to create your own, you can find animated GIF collections on the web at:

The GIF Controversy

In 1987, CompuServe released the GIF format as a free and open file specification, which meant that people could create and distribute GIFs without purchasing the rights from CompuServe. Between 1987 and 1994, GIF became the most popular image format on the Internet. Unfortunately, GIFs employ an image compression method known as LZW (Lempel-Ziv-Welch), which is patented by the Unisys Corporation. Unisys is not asking for any licenses for GIFs themselves, but only for software that incorporates the LZW algorithm. Since most commercial programs that create GIF files already have a license from Unisys, web authors creating GIF files with these programs do not need to worry about getting a separate license. However, uncertainty about the patent issue and how Unisys might try to enforce its patent in the future has caused many in the web community to move away from GIFs as a preferred file format. A new file format called PNG (Portable Network Graphics) has been offered. However, PNGs can't be used for animated graphics, and PNGs do not allow transparent colors. Check out the article "The GIF Controversy: A Software Developer's Perspective."

JPEG Files

JPEG (Joint Photographic Experts Group) is another important image format supported by most web browsers. The JPEG format differs from the GIF format in several ways. The JPEG format supports the full 16.7 million colors available in the color palette. JPEGs are most often used for photographs and images that use a wide spectrum of color. However, the GIF format is the most commonly used image format on the web. The JPEG compression algorithm usually makes files smaller than GIFs. However, if an image has large sections of the same color, the GIF format would create a smaller and better looking image.

Unlike GIFs, JPEG files allow you to control the amount of compression used. Increasing the compression reduces the file size - also, it reduces the quality of the image. It is important to note that a smaller file size does not always mean that your page will load faster. The browser has to decompress the JPEG image when it retrieves it, and some heavily compressed images can take more time than retrieving and displaying a less compressed file.

While JPEG excels in compressing real world true color images, it offers no support for palette-based images.

Inline Images

We can insert an inline image into a web page with the following syntax:

<IMG SRC="image_file">

For example, to insert the "198hacker.gif" image we would use:

<IMG SRC="198hacker.gif">

Which will appear as at the point where this tag is inserted.

Using the ALT Property

We can add an optional ALT property to the <IMG> tag to specify text that will appear in the place of the inline image. This is useful for the user to see the text while an image is loading. Nongraphical browsers will see this text in place of the image. Also, the ALT property adds a yellow pop-up when the mouse is over an image. The syntax to add the ALT property is: ALT="The text you want to appear" (see example below)

<IMG SRC="198hacker.gif" ALT="This guy is typing away...">

Which will appear as This guy is typing away.... Test it out by placing your mouse over the image and wait a few seconds for the yellow pop-up to appear. Note that it says, "This guy is typing away..." If this image was a very large file, and we were viewing it over a modem Internet connection, we would see this text appear while the image was loading.

Using the ALIGN Property

<IMG SRC="image_file" ALIGN=alignment>

With the ALIGN property, alignment specifies how surrounding text should be aligned with the graphic. It can be either TOP, MIDDLE, BOTTOM, LEFT, or RIGHT. Basically, these values determine how the text wraps around the picture.

Controlling Image Size

The HEIGHT and WIDTH properties allow you to specify the image size. The syntax for setting the HEIGHT and WIDTH properties is:

<IMG SRC="image_file" HEIGHT=value WIDTH=value>

HEIGHT and WIDTH are the dimensions of the image in pixels. For example,

<IMG SRC="198hacker.gif" HEIGHT=125 WIDTH=125>

Will produce the following:

Generally, if you want to reduce the size of an image, you should do so in a graphics program, because you will also be reducing the size of the graphics file. Changing the size of an image within an <IMG> tag does not affect the file size.

It is a good idea to specify the HEIGHT and WIDTH of an image because your page will load faster. When the browser loads a page, it has to calculate the image size, then use this information to format the page. If you include the dimensions of an image, the browser does not have to perform this calculation.

General Tips

Image Maps

In order to make a web page appear exactly the same on every browser, some web authors create an entire web page with graphic images. The drawback is that the page will take longer to load. However, with this method, you can be absolutely sure that every browser on every operating system will see the exact same page.

When web pages are designed totally with graphic images, there will not be any hypertext links from text on the page since the entire page is made of graphic images. Also, it may not be desirable to make a special graphic for each link. Instead, we can use a single graphic to access multiple targets by defining hotspots within the image.

A hotspot is a defined area of an image that acts as a hypertext link. You may have visited a web site that displayed a map in which you could click on a specific area to view that area in greater detail. The map in this case would have defined hotspots that link to a more detailed image.

The following is an image of a pencil with hotspots defined for each of the course numbers. As you move the mouse over different course numbers, you can notice that the hyperlink points to each class page. Move your mouse over the different course numbers and notice the hyperlink URL that displays on the status bar at the bottom of your browser window.

Navigation

Also, the tabs for each chapter are displayed in a single graphic at the top of this page. The links to the page for each chapter are also hotspots that have been defined for each tab.

You define hotspots through the use of image maps. Image maps list the coordinates that define the boundaries of the hotspots on the image. Anytime a user clicks inside those boundaries, the hyperlink is activated.

You can define server-side image maps, but you will be depending upon the server to respond, which can be slow. Also, the target of the hyperlink is not displayed in the browser's status bar when server-side image maps are used. In a client-side image map, you insert the image map into the HTML file, and the user's browser processes the image map locally.

Defining Image Map Hotspots

One way to create the image map would be to open the image in a graphics program and record the coordinates of the points corresponding to the hotspot boundaries. Or, you could use a program that creates image maps for you. Here are some programs you may want to try:

However, I've used a page that uses a JavaScript to capture the coordinates. Right-click the link and pick OPEN IN NEW WINDOW, and Maximize the window. Then, from your page with your image, place the mouse where you want to record the coordinates, hit ALT + TAB to switch to the page with the JavaScript, and you've got the coordinates. You'll probably have to add or subtract a specific number of pixels from each coordinate to make it match exactly.

A better way to get these coordinates is to use Paint. The status bar shows the coordinates as you move your mouse. You can also click VIEW, ZOOM, LARGE SIZE to easily locate the exact coordinates. Paint can be found by clicking START, PROGRAMS, ACCESSORIES, PAINT. If the status bar is not visible at the bottom of your Paint window, click VIEW, STATUS BAR.

The general syntax for an image map is:

<MAP NAME="map_name">
<AREA SHAPE=shape COORDS="coordinates" HREF="URL">
</MAP>

Where map_name is the name you give the image map, shape is the type of hotspot (rectangle, circle, polygon), coordinates are the locations of points that define the shape, and URL is the target of the link.

Here are the image map tags for the pencil:

<IMG SRC="pencil.gif" alt="Navigation" height="25" width="750" border="0" usemap="#pencil">
<map name="pencil">
<area shape="rect" href="../owp/index.htm" coords="0,0 32,25" alt="My Old Web Page">
<area shape="rect" href="../130.htm" coords="32,0 110,25" alt="CIS 130 Class Information">
<area shape="rect" href="../146.htm" coords="111,0 194,25" alt="CIS 146 Class Information">
<area shape="rect" href="../196a.htm" coords="195,0 292,25" alt="CIS196A Class Information">
<area shape="rect" href="../196f.htm" coords="293,0 385,25" alt="CIS196F Class Information">
<area shape="rect" href="../197a.htm" coords="386,0 483,25" alt="CIS 197A Class Information">
<area shape="rect" href="198.htm" coords="484,0 575,25" alt="CIS 198 Class Information">
<area shape="rect" href="../282.htm" coords="571,0 655,25" alt="CIS 282 Class Information">
<area shape="rect" href="../ptk" coords="655,0 725,25" alt="Beta Lambda Delta Chapter of Phi Theta Kappa on Scrushy Campus">
<area shape="rect" href="../contact.htm" coords="725,0 750,25" alt="Contact Information">
</map>

Here is the pencil again, with the above hotspots defined:

Navigation

The rectangular hotspot coordinates are the upper-left corner and the lower-right corner of the rectangle. Enter coordinates as X, Y where X is the number of pixels from the left and Y is the number of pixels from the top. The CIS 130 rectangle's upper left corner is at 32,0 and its lower right corner is at 110,25 - thus, we entered the coordinates as COORDS="32,0 110,25"

The circular hotspot coordinates are the location of the center of the circle and the circle's radius. A circle starting at the coordinates 161,30 with a radius of 49 would be entered as COORDS="161,130,49"

An irregular shape can be entered as a POLY (Polygon). To create a polygonal hotspot, you enter the coordinates for each vertex in the shape. Notice the coordinates for the vertices of the Bryd Hall building on the right. When you work through Tutorial 3, you will complete the "Space Expo" web page by entering these hotspots. Enter these coordinates in the <AREA> tag as follows:

<AREA SHAPE=POLY COORDS="29,4,29,41,111,41,111,78,213,78,213,4" HREF="bryd.htm">

Make Your Site Stand Out With favicon.ico

Have you ever bookmarked a site (added a site to your favorites) and noticed that some sites place their icon next to their link in your favorites list? Simply add a 16 pixel by 16 pixel icon (.ico) file in your root directory and name it favicon.ico - Internet Explorer will look for this file and add your logo when visitors add you to their favorites.
